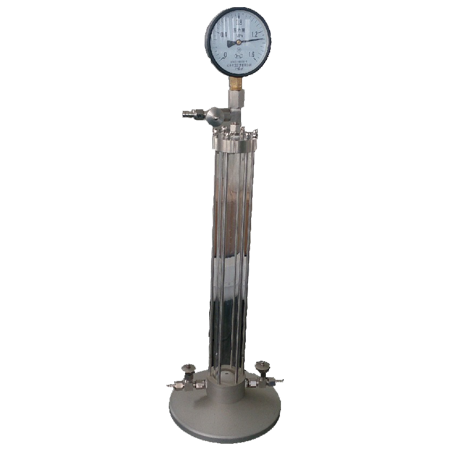

KN-1657 LPG Pressure Hydrometer Cylinder

Overview

  KN-1657 LPG Pressure Hydrometer Cylinder conforms to the ASTM D1657 Standard Test Method for Density or Relative Density of Light Hydrocarbons by Pressure Hydrometer, is used for testing the density or relative density of light hydrocarbons including liquefied petroleum gases (LPG) having Reid vapor pressures exceeding 101.325 kPa (14.696 psi).

Features

1.The apparatus comprises of pressure gauge, which makes easier to observe the pressure of the inner tube. Ensure the operating safety.

2.A polymethylmethacrylate pressure cylinder, clear observation of the hydrometer and thermometer

3.Reasonable structure with decent appearance.

Technical parameters

1.Working pressure：1.2MPa

2.Inlet and outlet mouth diameter：6mm

3.Pressure cylinder diameter：51mm, thickness: 6.5mm

4.Length of the cylinder：445mm

5.Ambient requirements：Temperature 10~40°C; Humidity≤85%
